    • ALDU1 XtremeALDL USB-to-ALDL Converter

    ALDU1 XtremeALDL USB-to-ALDL Converter

    ALDU1

    $50.00
    $50.00
    Sale Sold out
    Shipping calculated at checkout.

    In stock

    (20+ units)

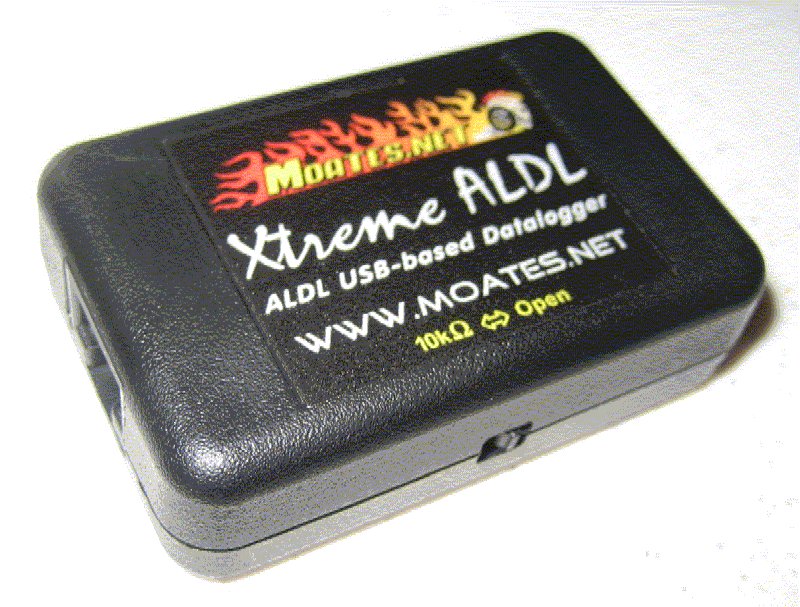

    Does not work by itself, needs the CABL1 or CABL2 to work! USB-based ALDL converter box. Goes between your PC and a CABL1 or CABL2. Works great, unlike most USB/Serial converters. Goes straight from USB to ALDL. Does NOT work with a serial port. Compatible with all the popular programs in Windows (TunerProRT, DataMaster, TunerCat, EFILiveV4/OBD1, WinALDL). Will do 160-baud and 8192-baud communication. Not for use with the 'Moates' ECM852 software or other DOS-based programs. Self-powered via USB, and it has a built-in switch to select mode (10k or Open) for the A-B pins. Comes with a 6-ft USB cable, but requires either the CABL1 or CABL2 for connection to the car, depending on your application. The RJ-type-looking connector you see in the picture is for the New-Style CABL1 and CABL2, and it is not a standard RJ-type connector. It is also NOT compatible with the old-style AutoXray type cables.

    Reviews

    Customer Reviews

    Based on 6 reviews
    100%
    (6)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    B
    Ben Sauder

    Excellent product, for those without a serial port. Works every time (using TunerPro RT). Good value!

    P
    Paul Regner

    An excellent product! Thoughtfully designed, and well built. The support from Craig and Mark is awesome as well; e-mailed questions are addressed quickly, and with complete answers. I highly recommend this product!

    B
    Bryan Smith

    Couldn't be happier. Converter worked 1st time right out of the box.

    G
    Gordon Gamache

    very well built. could not get it to work"my fault" very quick responce from craig an he had me going in no time

    A
    Anthony Thomasel

    Wonderful! I'd spent months trying to find an USB-Serial adaptor to work with my USB laptop and serial cable. I bought this and it works like a charm. I use it with both TunerPro and DataMaster with 0 problems.

    12
    View full details
