    HONDA1 - Honda ECU Chipping Kit

    HONDA1

    $30.00
    $30.00
    Sale Sold out
    Shipping calculated at checkout.
    ECU Type

    In stock

    (20+ units)
    This is the most complete kit on the market for Chipping Honda ECUs.

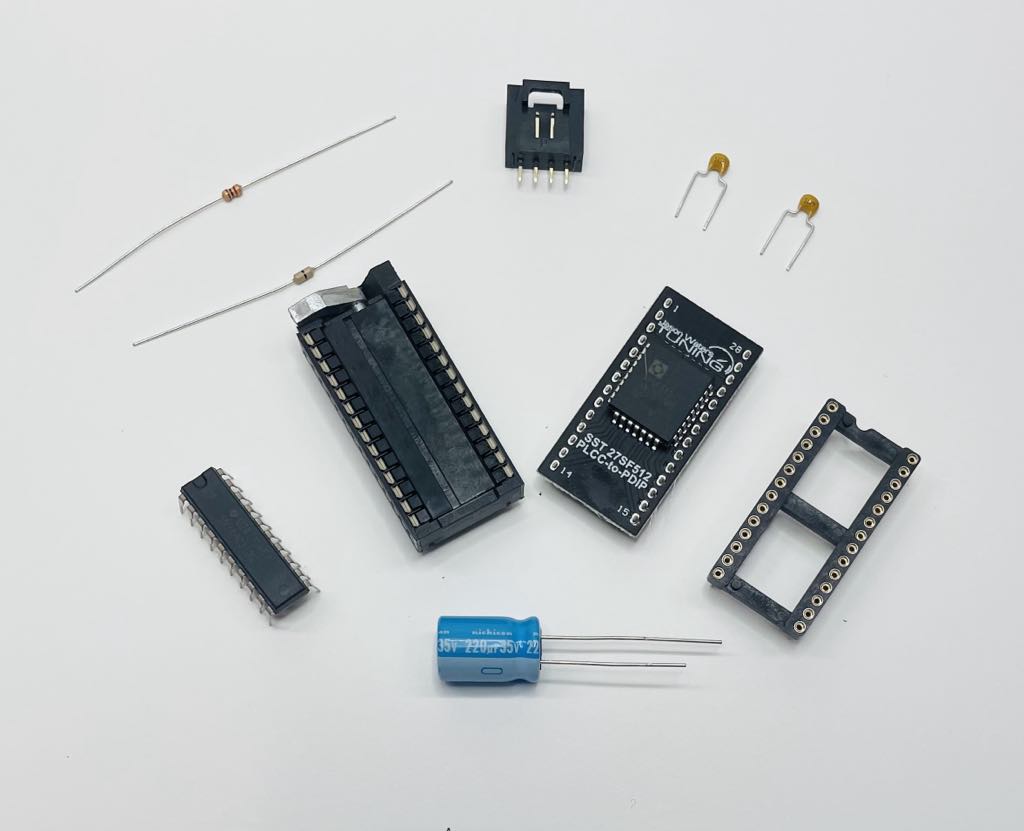

    This Kit Contains:

    27SF512 JWT Chip
    28-Pin Collet Socket
    28-Pin Low-Profile ZIF Socket
    74HC373 Logic Chip
    0 Ohm resistor for J1
    1k Resistor
    0.1 uF Capacitor (2 Pcs)
    4-Pin Datalogging header
    Replacement capacitor for C14 position (preventive measure)

    ECU Compatibility:

    This kit is compatible with the following US 1992-1995 Honda ECUs:

    P28 - 1992-1995 Civic Ex/Si | Del Sol Si
    P30 - 1992-1995 Del Sol VTEC
    P61 - 1992-1993 Integra GS-R
    P72 - 1994-1995 Integra GS-R
    P75 - 1992-1995 Integra RS/LS/GS/SE
    P05 - 1992-1995 Civic CX
    P06 - 1992-1995 Civic DX


    Software Compatibility

    This kit is fully compatible with Honda Tuning Software/ROM Editors such as:

    - CROME
    - Uberdata
    - Hondata**


    Product Features:

    - Low Profile ZIF (Zero-Insertion Force) Socket for easy chip removal without bending the legs.
    - Filtering capacitors to ensure data integrity from the EEPROM
    - 2Timer Compatibility - The 27SF512 JWT Chip is not compatible with the 2Timer.  For use of the 2Timer please request the SST27SF512 2.0 Chip (blue chip) to hold two roms.

    **Note Hondata S100/S200 systems will require a non-latched 4-pin Header for the CN2 port. If you are using this for Hondata, please add a comment in your order so we can accomodate you

    Please also note that you have the option of ordering 'Through-Hole' or 'Surface Mount'. If you have the rectangular or U.S.-made 'large' ECU, then you should get the Through-Hole kit (default, most common). If you have the small, square 'JDM' ECU, then you should get the Surface Mount kit.
