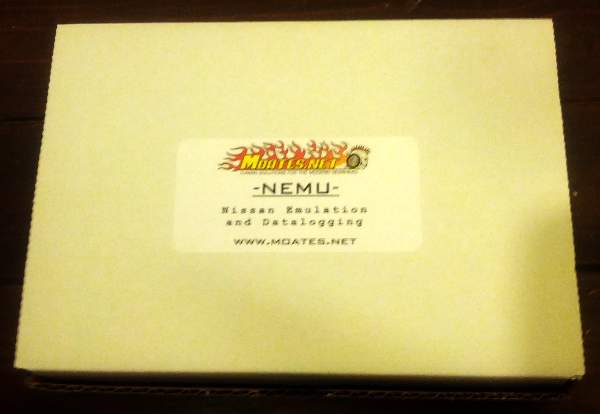

NEMU+Nismotronic Tuning Package

The Nemu+Nismotronic Tuning Package is a complete, single-vehicle solution. High-speed datalogging, emulation, onboard storage, and advanced custom ROM options: these features are available nowhere else!

All the necessary ingredients for a complete turnkey tuning package are included:

NEMU Emulation and Datalogging Hardware:

• Installs entirely within ECU, uses a single USB connection for logging and Emulation (No need for a consult cable!)
• SUPER fast realtime emulation and logging (Uploads and Downloads)
• 4MB Onboard Logging capacity
• 4 Analog input channels for viewing any 0-5v sensor input (wideband, map sensor, iat, egt, oil pressure)

NismoTronic Tuning Software and User Interface:

• RealTime Tuning and Logging via NEMU RT Boards
• Onboard Logging via NEMU RT Boards
• ADC Inputs for Wideband/IAT/ETC via NEMU RT Boards
• User Definable Live Gauges, Graphing, and Monitor Tables
• AFR Target Table (Target AFR) and Raw Table (Logged AFR)
• AFR Difference Table (Difference in Logged vs Target AFR in percentage)
• User Definable MAF curves! (Create your own custom MAF curve and save it into the MAF Data file to use on multiple tune files with just one click!)
• Intuitive GUI with visual graphing. Tons of quick keys for quickly editing table values. Interactive 2D Graphing.
• Innovate, AEM, PLX, and SLC Pure Wideband Support
• Program Auto Update Feature
• Import/Export Fuel and Ignition tables
• Export Data Logs to CSV format for viewing in other programs (EXCEL, Virtual Dyno)

TunerCode VN5 Advanced ECU Firmware:

• High RPM tuning limit (8012.5 rpm) removed.
• Single-Table Fuel and Timing Maps.
• Choice of soft cut or hard cut rev limits. Launch Control. Overboost rev limiter.
• Soft cut Speed Limit (Can be disabled or set for valet mode)
• Programmable A/C Compressor and radiator Fan controls.
• Knock and Dwell control. Startup fuel and timing.
• Accel, TPS, and CLT Enrichment. Injector size specification.
• Decel Fuel Reduction, Idle fuel/timing, Fuel Cut control
• Enable/Disable: Knock Analysis, Closed Loop O2 Analysis, Long Term Fuel Trim (self-learn), TPS fuel map load column contol, EGR, AIV, O2 Sensor Heater, A/C Compressor, etc.
• Spark cut limiting, in addition to fuel cut limiting.
• Set Launch uses throttle, tach., and gear shift to set launch rev limit
• Programmable Outputs (5 trigger parameters, VVL, NOx, Fans, etc.)

When you purchase this package through the NismoTronic online webstore, they will include FREE installation into a customer supplied ECU! See this link if you're interested :  JK-Tuning
