    Ostrich 2.0 : The New Breed

    OSTRICH_2

    $175.00
    $175.00
    Sale Sold out
    Shipping calculated at checkout.

    In stock

    (20+ units)
    The newest breed of emulator has evolved!

    Note: When using with 24-pin GM applications, you MUST use a Socket Booster!
    (available separately).


    Note2: If you'd like to have a custom length cable instead of the standard 18" (for example, 2" or 6" for noise or latency-sensitive applications such as VW or Nissan), please include a note in the comments section of your order and we'll provide that instead at no additional cost!

    Support
    For information on using the Ostrich 2.0, please visit this product's support page by clicking here

    Overview
    This is the newest Ostrich, the 2.0 unit. It is extremely small and compact, durable, versatile, and powerful. Full 921.6k speed, from 4k (2732A) up to 512k (4mbit 29F040) and everything in between (27C128, 27C256, 27C512).

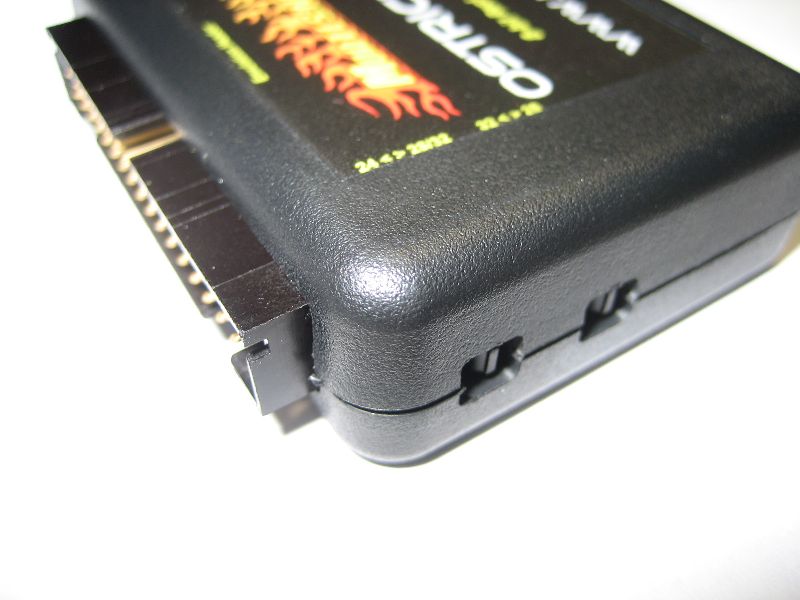

    This new design distills the experience to date from the Ostrich product, adding key power features such as address tracing, totally bumpless uploads and readbacks, fully isolated and buffered inputs and outputs, easy-access pinout configuration switches, clearly marked connectors, upgraded power supply sections, long-life lithium ion coin cell battery backup, reduced chipset USB interface, and common JEDEC-compatible 24, 28, or 32-pin emulation header.

    The new form factor is incredibly small and compact. With CNC-cut enclosures, as well as silkscreened lexan product description overlay, the Ostrich 2.0 sets a new standard in fitment and appearance. With state-of-the art performance, it is without rivals.

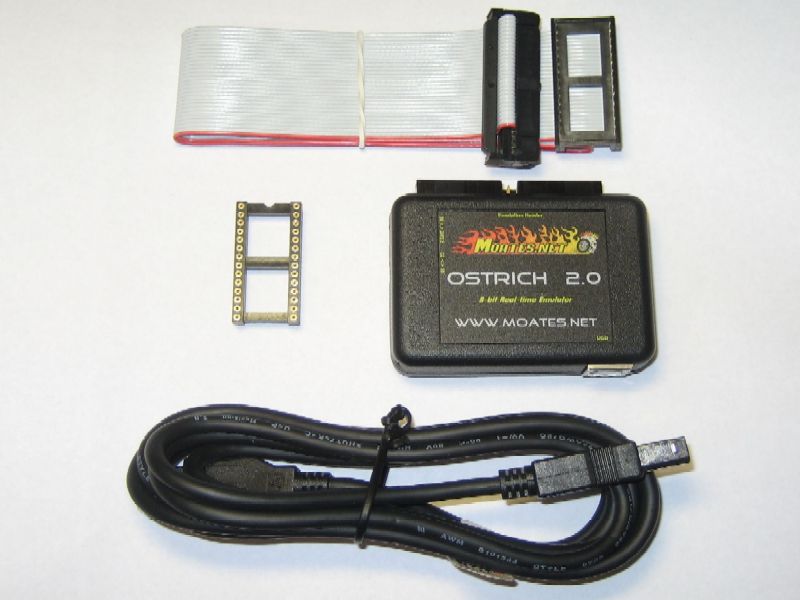

    Comes with 6 foot USB cable and 18" 28-pin DIP emulation header. Also comes with 28-pin machine-tooled socket that can be snapped onto the emulation cable for protection and improved connections.

    The Ostrich 2.0 now supports ROM tracing. This feature is very handy for ROM Definition developers, and can also provide pseudo-datalogging for ECUs using the hit window feature.
