    VTEC-1980 Conversion Kit

    VTEC-1980

    $20.00
    $20.00
    Sale Sold out
    Shipping calculated at checkout.

    In stock

    (13 units)

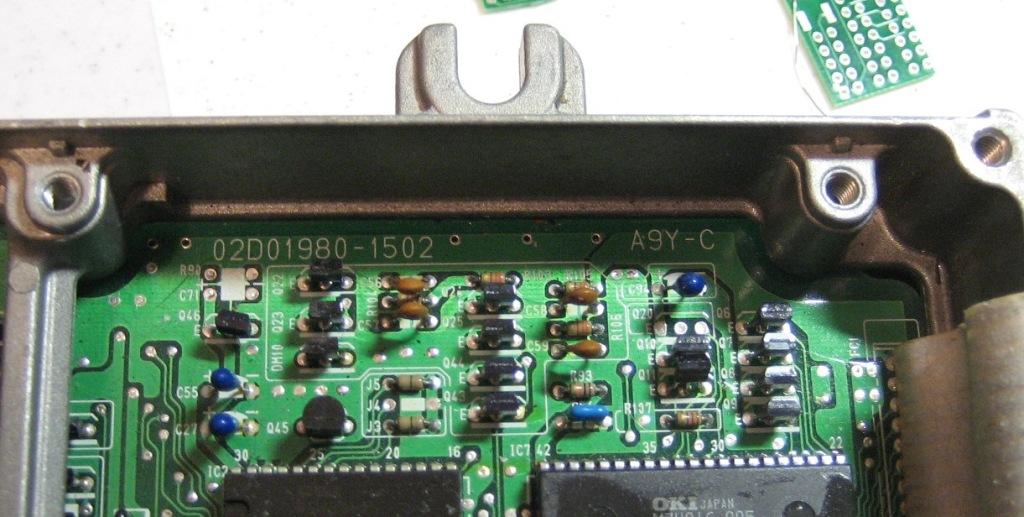

    The 1980 board is typically found in OBD I P72/P75 ECUs. To use this kit, make sure your board has "1980" in the model number as depicted here:

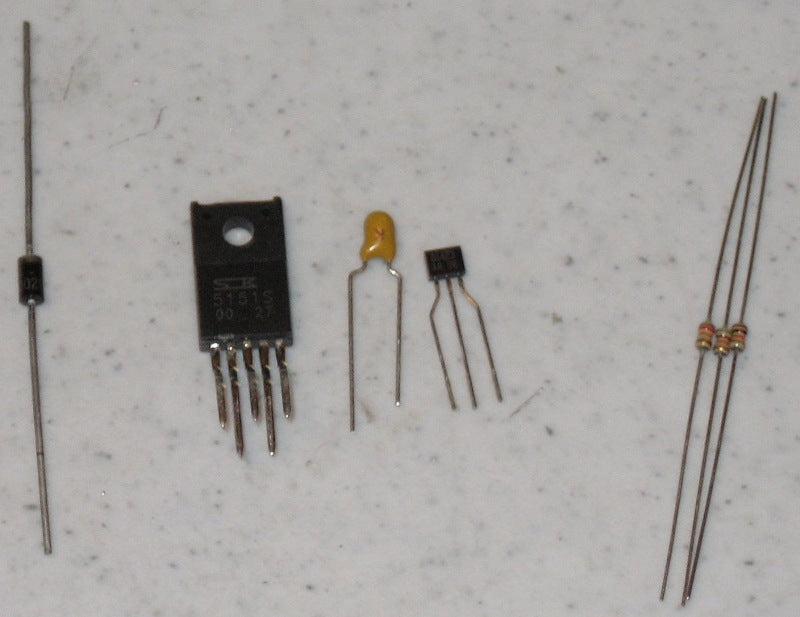

    This kit comes with the following components for the Honda 1980 board

    1980:

    C60	1uF Capacitor
D11	1N4002 Clamping Diode
IC14	SK5151 High Side Switch
J10	0 Ohm Resistor
R142	10K Ohm Resistor
R143	51K Ohm Resistor
R144	12K Resistor
Q26, Q37	D1423 (C2785 Replacement) Transistor
    Further information is available at pgmfi.org.
